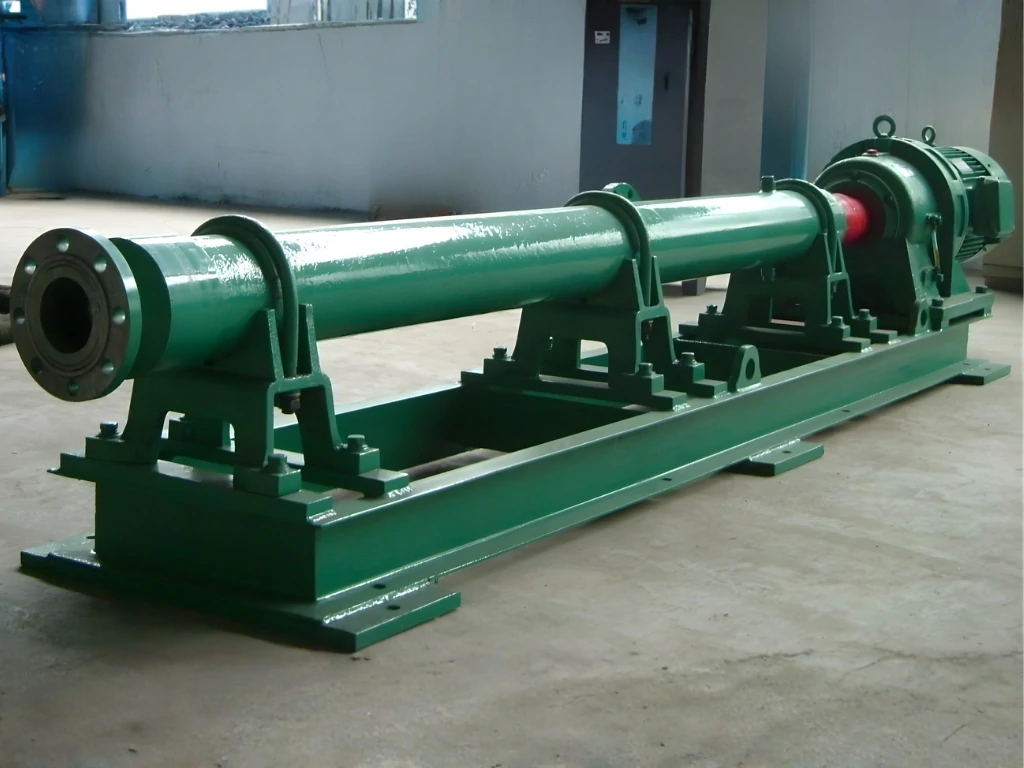

Multi-phase Transfer PCP

Highland series multiphase transfer PCP is a positive displacement pump, which mainly consists of power control panel, motor, bearing box, universal transmission mechanism, stator and rotor as the main working components.

The stator and rotor components are the main working parts of multiphase mixed flow pumps. The plateau series multiphase hybrid pump adopts multi head involute technology, which is the technical key and core of this product. The rotors and stators produced by our company are patented 3/4 head structures, characterized by large displacement, high head, and low speed. The rotor adopts a 3-head hollow structure, which can effectively reduce the weight of the rotor and alleviate the rotational inertia force. The stator is a rubber cylinder with 4 spiral lines, covered with a steel shell. This forms a series of mutually spaced sealed chambers between the rotor and stator. When the rotor rotates inside the stator, the sealed chambers move axially from the suction end to the discharge end.

Multi-phase Transfer PCP

No.	Model	Capacity m³/h	Lift MPa	r/min	Reducer	Power KW
1	HL22－20－2.4	20	2.4	167	CR87	22
2	HL22－17－2.4	17	2.4	136	CR87	18
3	HL22－15－2.4	15	2.4	120	CR87	15
4	HL22－13－2.4	13	2.4	107	CR87	15
5	HL22－10－2.4	10	2.4	96	CR87	11
6	HL22－8－2.4	8	2.4	77	CR87	10
7	HL22－20－1.8	20	1.8	167	CR87	15
8	HL22－17－1.8	17	1.8	136	CR87	15
9	HL22－15－1.8	15	1.8	120	CR87	11
10	HL22－13－1.8	13	1.8	107	CR87	11
11	HL22－10－1.8	10	1.8	96	CR87	10
12	HL22－8－1.8	8	1.8	77	CR87	10
13	HL44－33－2	33	2	136	CR97	30
14	HL44－29－2	29	2	120	CR97	22
15	HL44－25－2	25	2	107	CR97	22
16	HL44－33－1.6	33	1.6	136	CR97	22
17	HL44－29－1.6	29	1.6	120	CR97	18
18	HL44－25－1.6	25	1.6	107	CR97	18
19	HL44－33－1.2	33	1.2	136	CR97	22
20	HL44－29－1.2	29	1.2	120	CR97	18
21	HL44－25－1.2	25	1.2	107	CR97	15
22	HL55－52－2	52	2	167	CR107	37
23	HL55－42－2	42	2	136	CR107	37
24	HL55－31－2	31	2	107	CR107	30
25	HL55－52－1.6	52	1.6	167	CR107	37
26	HL55－42－1.6	42	1.6	136	CR97	30
27	HL55－31－1.6	31	1.6	107	CR97	22
28	HL66－62－1.5	62	1.5	167	CR107	37
29	HL66－50－1.5	50	1.5	136	CR97	30
30	HL66－42－1.5	42	1.5	120	CR97	30
31	HL66－31－1.5	31	1.5	96	CR97	22
32	HL66－29－1.5	29	1.5	85	CR97	18
33	HL66－62－1.2	62	1.2	167	CR97	30
34	HL66－50－1.2	50	1.2	136	CR97	30
35	HL66－42－1.2	42	1.2	107	CR97	22
36	HL66－31－1.2	31	1.2	96	CR97	18
37	HL66－29－1.2	29	1.2	85	CR97	15
38	HL127－83－2	83	2	136	CR147	75
39	HL127－75－2	75	2	107	CR147	60
40	HL127－67－2	67	2	96	CR147	55
41	HL127－58－2	58	2	85	CR147	50
42	HL127－83－1.6	83	1.6	136	CR147	60
43	HL127－75－1.6	75	1.6	107	CR147	50
44	HL127－67－1.6	67	1.6	96	CR147	45
45	HL127－58－1.6	58	1.6	85	CR147	37
46	HL127－83－1.2	83	1.2	136	CR147	45
47	HL127－75－1.2	75	1.2	107	CR107	37
48	HL127－67－1.2	67	1.2	96	CR107	37
49	HL127－58－1.2	58	1.2	85	CR107	30
