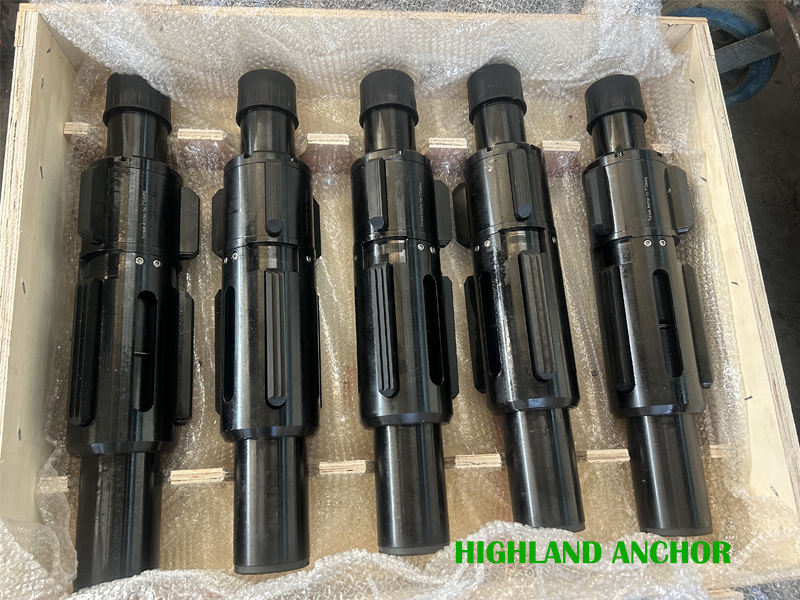

Main Technical Parameters
|
Size |
OD mm |
ID mm |
Length mm |
Casing |
Connection |
|
|
mm |
inch |
|||||
|
5 1/2〞 |
108 |
60 |
680 |
118-128 |
4.64-5.03 |
2 7/8〞NU |
|
6 5/8〞 |
133 |
62 |
620 |
144-153 |
5.66-6.02 |
2 7/8〞NU |
|
7〞 |
144 |
62 |
850 |
150-164 |
5.90-6.45 |
2 7/8〞NU |
|
9 5/8〞 |
206 |
76 |
720 |
216-230 |
8.50-9.05 |
2 7/8〞NU |
TIPS:
1. Select the appropriate anchor according to the size of the casing and connect it to the lower end of the pump stator.
2. The direction of the oil pipe anchor going down the well is: the internal thread is on top, the external thread is on bottom. When installing the casing, rotate it in the opposite direction by 1/3 of a turn, enter the casing pipe mouth, smoothly place it down, and tighten it according to the recommended torque for the oil pipe thread.
3. After lowering the pump stator to the predetermined depth, apply a torque of 400N · m clockwise to the tubing string, and then fix the tubing string to the wellhead. At this point, the torque anchor has been anchored to the casing.
4. It is recommended to use tubing stabilizers on the outlet end of the screw pump and at the lower end of the anchor body to reduce vibration
