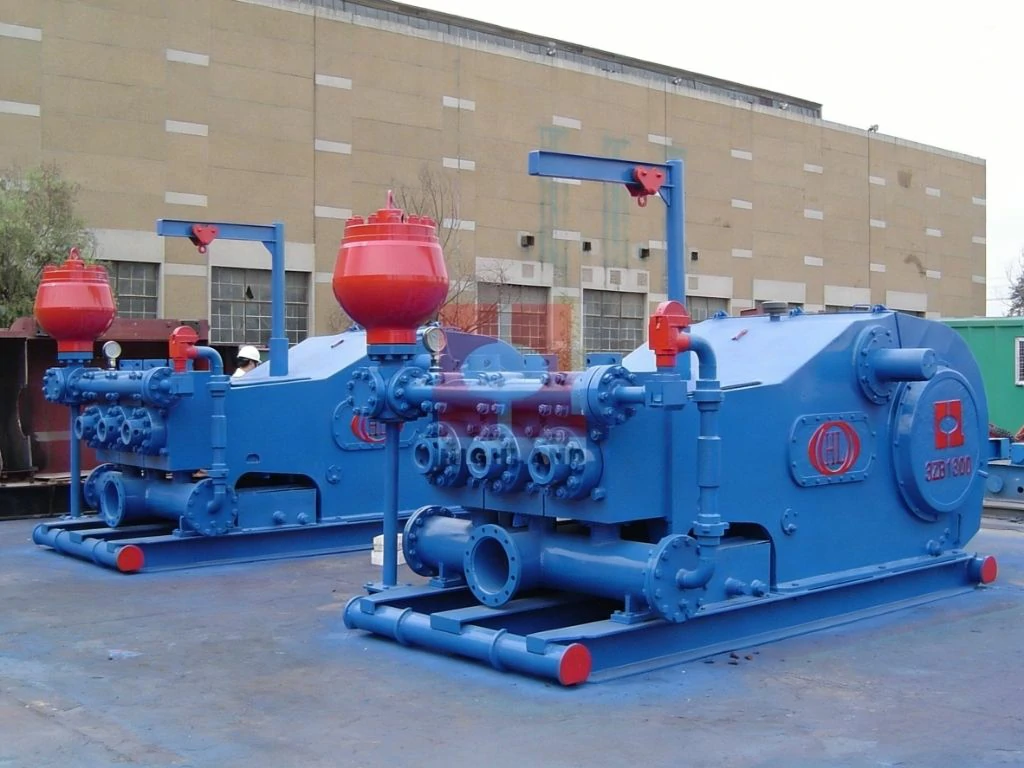

Mud Pump |
F-500 |
F-800 |
F-1000 |
F-1300 |
F-1600 |
|
Type |
Triplex single acting |
Triplex single acting |
Triplex single acting |
Triplex single acting |
Triplex single acting |
|
Rated Power |
373kw |
596kw |
735kw |
969kw |
1193kw |
| 500HP | 800HP | 1000HP | 1300HP | 1600HP | |
|
Rated Speed |
165 SPM |
150 SPM |
140 SPM |
120 SPM |
120 SPM |
|
Stroke(mm/inch) |
190/7 1/2 |
228.6/9 |
254/10 |
305/12 |
305/12 |
|
Max.Liner Dia. |
170/6 3/4 |
170/6 3/4 |
170/6 3/4 |
180/7 |
180/7 |
|
Gear Type |
Herringbone |
Herringbone |
Herringbone |
Herringbone |
Herringbone |
|
Valve Pot |
API-5 |
API-6 |
API-6 |
API-7 |
API-7 |
|
Gear Ratio |
4.286:1 |
4.185:1 |
4.207:1 |
4.206:1 |
4.206:1 |
|
Suction Inlet |
203/8 |
254/10 |
305/12 |
305/12 |
305/12 |
|
Discharge Inlet |
4Flange |
5Flange |
5Flange |
5Flange |
5Flange |
| 5000 psi | 5000 psi | 5000 psi | 5000 psi | 5000 psi | |
|
Lubrication |
Forced& |
Forced& |
Forced& |
Forced& |
Forced& |
| Splash | Splash | Splash | Splash | Splash | |
|
Max. Pressure |
27.2Mpa |
34.5Mpa |
34.5Mpa |
34.5Mpa |
35Mpa |
| 3945 psi | 5000 psi | 5000 psi | 5000 psi | 5080 psi | |
|
Overall Size(in) |
144*106*86 |
156*79*66 |
163*89*70 |
174*121*78 |
181*129*106 |
|
Weight(kg) |
9770 |
14500 |
18790 |
24572 |
24791 |
|
I |

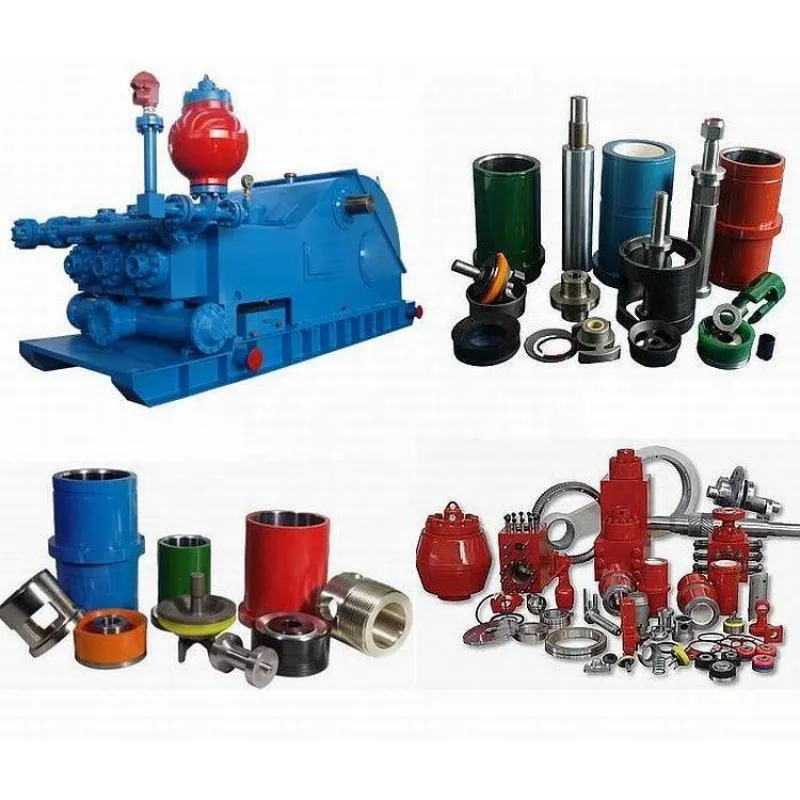

F1600-MUD PUMP parts |
Item |
|
1 |
AH33010-00 |
Pulstation Dampener KB-75
|
|
II |
F1600-MUD PUMP parts |
Item |
|
1 |
AH-36002-04-01 |
Crosshead |
|
2 |
AH-36002-04-03 |
Crosshead Pin |
|
3 |
AH-36001-04-19 |
Crosshead Bearing (4G254941Q) |
|
4 |
AH36001-04-08-00 |
Double Lip Seal. |
|
5 |
AH36001-03-09 |
PINION SHAFT BEARING |
|
6 |
AH37001-01-09-00 |
Main Bearing ( 3003760y ) |
|
7 |
AH-36002-04-02 / AH1301010402 |
Crosshead Guide (Upper) |
|
8 |
AH-36001-04-17 / AH-1301010412 |
Crosshead Guide (Lower) |
|
9 |
AH-36002-04.04 |
Crosshead Pin Retainer. |
|
10 |
2S |
Oil Pump Assy . |
|
13 |
AH36002-10.00 |
F1300/1600 Handling Tool |
|
14 |
AH-36002-05-06-00 |
Clamp Piston Rod . |
|
15 |
AH-3601-05-23A-00 |
Piston Rod . |
|
16 |
AH-36001-04-10 |
Fluid Baffle Disk |
|
17 |
AH36001.02.16C |
Main Bearing Bolt. |
|
18 |
AH37002-01.01 |
Bearing Carrier - Right. |
|
19 |
AH37002-01.03 |
Bearing Carrier - Left. |
|
20 |
AH36002.05.01.02 |
Liner Clamp Stud Nut,01-8UNC. |
|
21 |
T500-5005 |
Stud, Module to Liner Clamp, 1-1/4-12UNS/1-8UNC x 7-1/2. |
|
22 |
AH34007-06.01.00 |
Gear of Pump Assy. |
|
24 |
AH-36001-05A-07 |
Positioning Plate (ALIGMENT RING) |
|
25 |
AH36001-05.03 |
CYLINDER HEAD |
|
26 |
AH-360001-05A-06-00 |
CYLINDER HEAD PLUG |
|
27 |
95mm ID X 5.3mm |
O-Ring Seal for Discharge Manifold. P/N: 95mm ID X 5.3mm |
|
28 |
AH-36001-05A-04 |
Flashboard Assembly |
|
29 |
GB3452.1-82"O" 185 x 7 |
O-Ring Seal for Suction. |
|
30 |
VALVE GUIDE |
AH-36001.05A-05.00 |
|
III |
F1600-MUD PUMP parts |
Item |
|
1 |
AH33001-30 |
Elbow Assy AH33001-30 |
|
2 |
AH36001-05.09 |
Discharge manifold AH36001-05.09 |
|
3 |
AH33002-02 |
Bottom Plug Dampener AH33002-02 |
