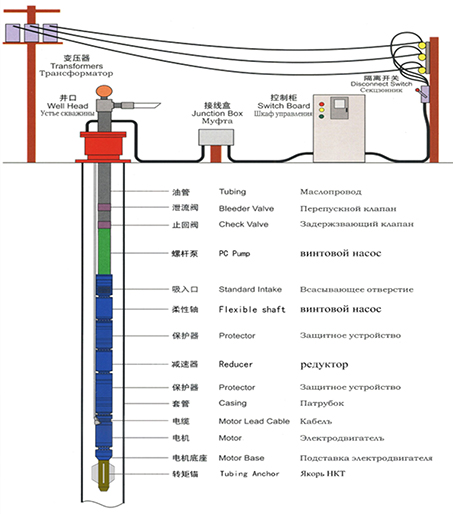

The Electric Submersible Progressive Cavity Pump system(ESPCP) mainly consists of a submersible permanent magnet direct drive motor, protector, coupling, PC pump, and surface control panel. The submersible permanent magnet direct drive motor has the characteristics of low output speed, high torque, high efficiency, and low energy consumption; A coupling with high wear resistance and corrosion resistance can buffer, reduce vibration, and improve the dynamic performance of the shaft, bear axial forces, and ensure the torque transmission and operational accuracy of the main and driven shafts.
Specifications:
|
Type |
Casing Size |
Rated Rotating Speed(RPM) |
Displacement(>m3/d) |
Lift(m) |
Motor Power(KW) |
|
QLB 5-1/2 |
5-1/2" Above |
80-360 |
10-60 |
1000-1800 |
12-30 |
|
QLB 7 |
7" Above |
80-360 |
30-120 |
1000-1800 |
22-43 |
|
QLB 9-5/8 |
9-5/8" |
80-360 |
50-200 |
900-1800 |
32-80 |
|

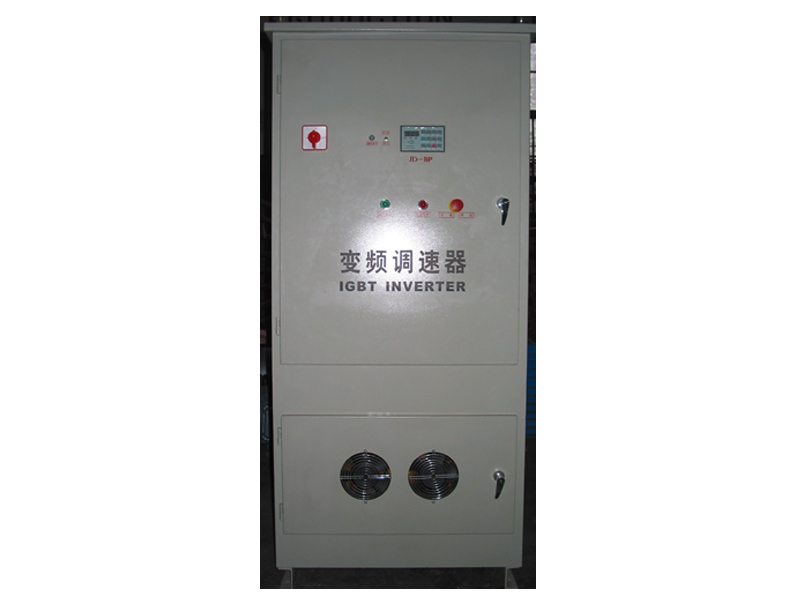

Note: Variable frequency control panel is available |
|||||
