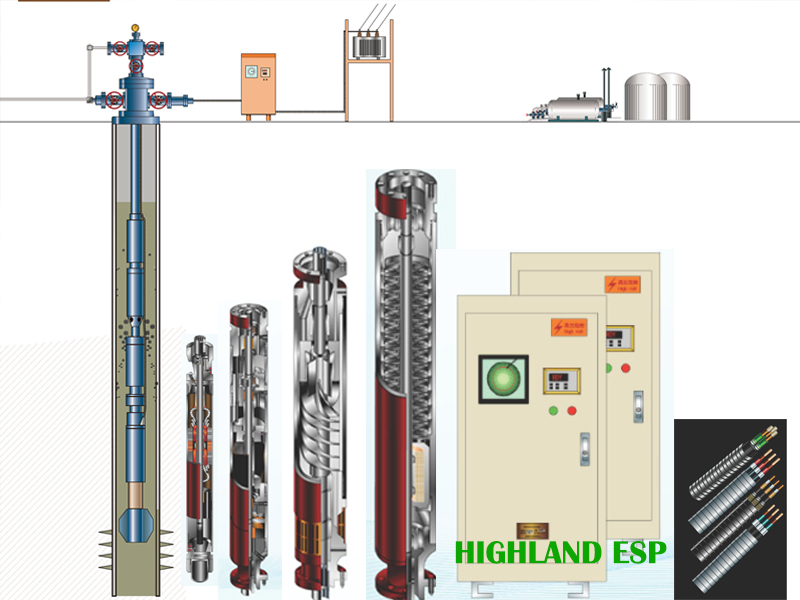

ESP:
Submersible centrifugal pump is a kind of multistage centrifugal pumpin three assembling types of float, compression and bottom float,withtwo stage structures, radial flow and mixed flow, and categorized asstandard, abraision resistant , anti-corrosion pump etc., which canbe applicable to different well conditions.
Displacement range: 20~5000m3/d
Pump hanging depth: 5000m
Motor power: 7~837kW
Temperature grade: 90 ~260°C
OD series: 95~187mm
Capacity:60-30000BPD @ 50Hz
75-36000BPD @ 60Hz.
Features and Advantages:
We deploy our advanced ESP systems in the most extreme downhole environments. High temperature, immense pressure, fluid-borne abrasives, excessive gas, scale, and variable flow rates are common. Innovative technologies in our ESP systems directly address each threat. Our technology, superior service, and expertise widen the performance gap to our closest competitors.
- Wide-range
- Sand prevention
- Scale prevention
- Corrosion prevention
- High gas content
- Resistance to heavy oil
- High temperature
Specifications of ESP:
|
Frequency |
50Hz |
60Hz |
||||||
|
Model |
Power |
Capacity |
Power |
Capacity |
||||
|
kW |
HP |
m3 |
BPD |
Kw |
HP |
m3/d |
BPD |
|
|
86(338) |
58 |
78 |
10~150 |
63~943 |
70 |
93 |
12~180 |
75~1130 |
|
88(346) |
58 |
78 |
10~150 |
63-943 |
70 |
93 |
12-180 |
75~1130 |
|
95(375) |
115 |
154 |
10~500 |
63-3145 |
138 |
185 |
12-600 |
75-3774 |
|
98/(387) |
157 |
210 |
10-800 |
63-5030 |
188 |
253 |
12-960 |
75~6038 |
|
102/(400) |
157 |
210 |
10~800 |
63-5030 |
188 |
253 |
12-960 |
75-6038 |
|
130(513) |
390 |
523 |
100-1600 |
630-10060 |
253 |
627 |
120-1920 |
755~12075 |
|
172(675) |
390 |
523 |
900-4800 |
5660-30190 |
468 |
627 |
1080-5760 |
6790-36226 |
