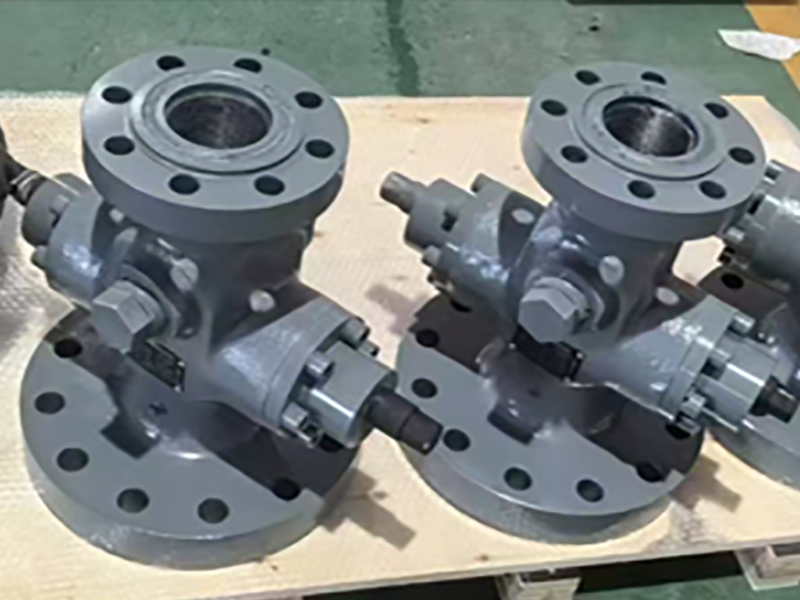

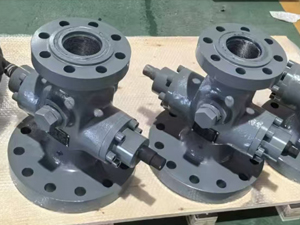

I-BOP
|
Model of I-BOP |
IBOP 79-21-32 |
Technical description |
3-1/8，3000PSI，R31；3-1/8，3000PSI，R31 Gasket ring |
|
Top connecting thread |
3-1/2 EU Box |
Lower connecting thread |
3-1/2 EU Box |
|
Max ID |
3-1/8（Φ79.4） |
Bottom connection |
7-1/16，3000PSI，R45 7-1/16, 3000PSI, R45 Gasket ring |
|
Seal Pressure Class |
3000PSI（21MPa） |
Static seal pressure |
≥3000PSI（21MPa） |
|
PR Seal Diameter |
1-1/4（Φ31.75mm） |
Flow Tee Outlet pipeline |
3 in LP Box（With plug） |
|
Number of Flashboard |
1 set |
Other Outlet pipeline |
2 in LP Box（With plug） |

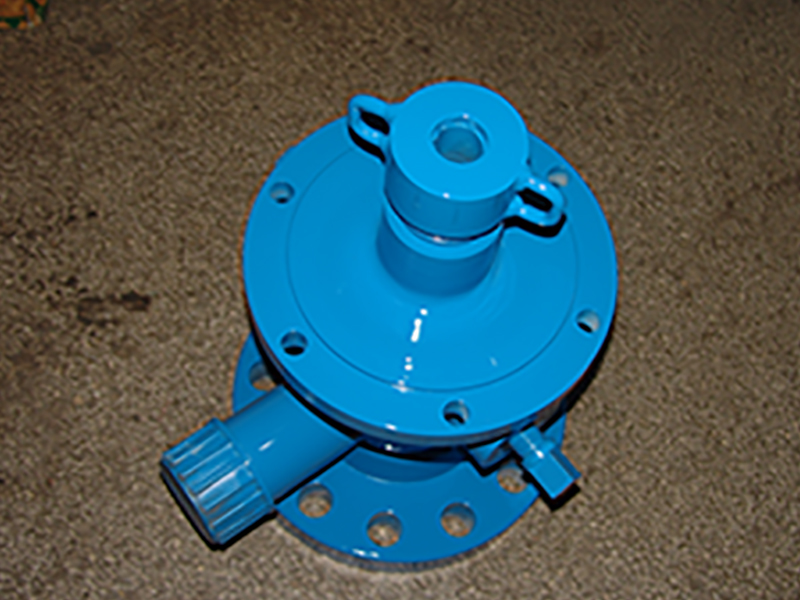

Polished Rod Stuffing Box
|
Model of I- stuffing box |
CWG25～CWG38 |
Working pressure(MPa) |
25 |
|
Max. Diameter |
φ180 |
Max. Height |
460 |
|
Suitable polished rod diameter |
φ25～φ38 |
Connecting type |
EUE, LP Thread type，Clamp type, coupling type |
