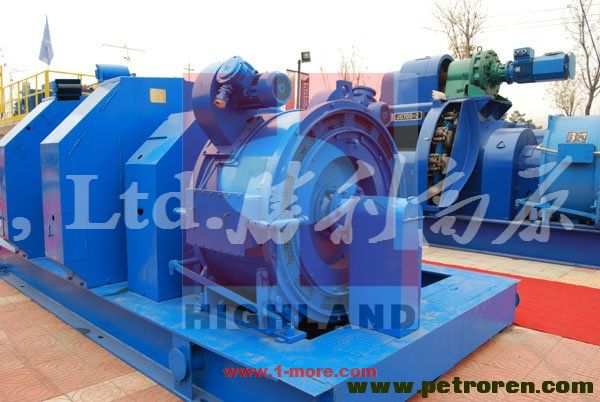

Highland drawworks have undergone more than 30 years of rigorous field testing on our land rigs, desert rigs and truck-mounted rigs. Leveraging valuable customer operational feedback, we have continuously optimized our hoisting system performance, enabling our products to exceed the standard requirements of API specifications.

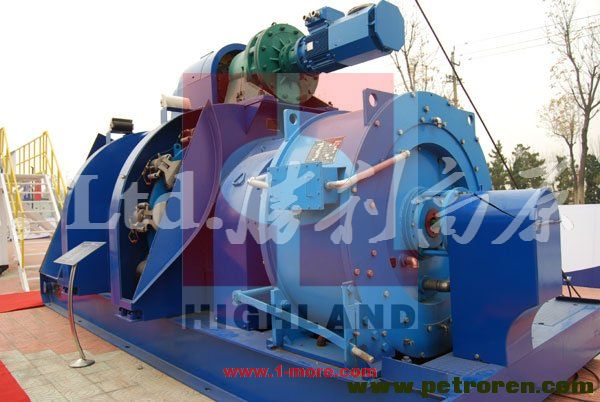

Superior Braking Performance
The operational performance and safety of drawworks rely heavily on the reliability of the braking system. For this reason, Highland drawworks are equipped with a high-performance dual braking system:
- Main Brake: High-performance hydraulic disc brake
- Auxiliary Brake: High-power eddy current brake (Eaton Airflex series available) [link]
In addition, both brake drums and brake discs adopt medium-frequency induction hardening treatment, which effectively enhances structural rigidity and greatly extends overall service life.
Core Design Advantages
- Fully manufactured in strict accordance with API Spec 7K industry standards
- Adopts reinforced chains with forced circulation lubrication, ensuring stable and long-term reliable operation
- Full roller bearing structure minimizes friction and component wear
- High-strength hardened alloy steel shafts deliver excellent structural stability
- Medium-frequency induction hardened sprockets achieve superior durability and wear resistance
Main Specifications & Product Range
Highland drawworks are classified into two series: drilling drawworks and workover drawworks, with complete specification coverage to meet diverse operational demands.

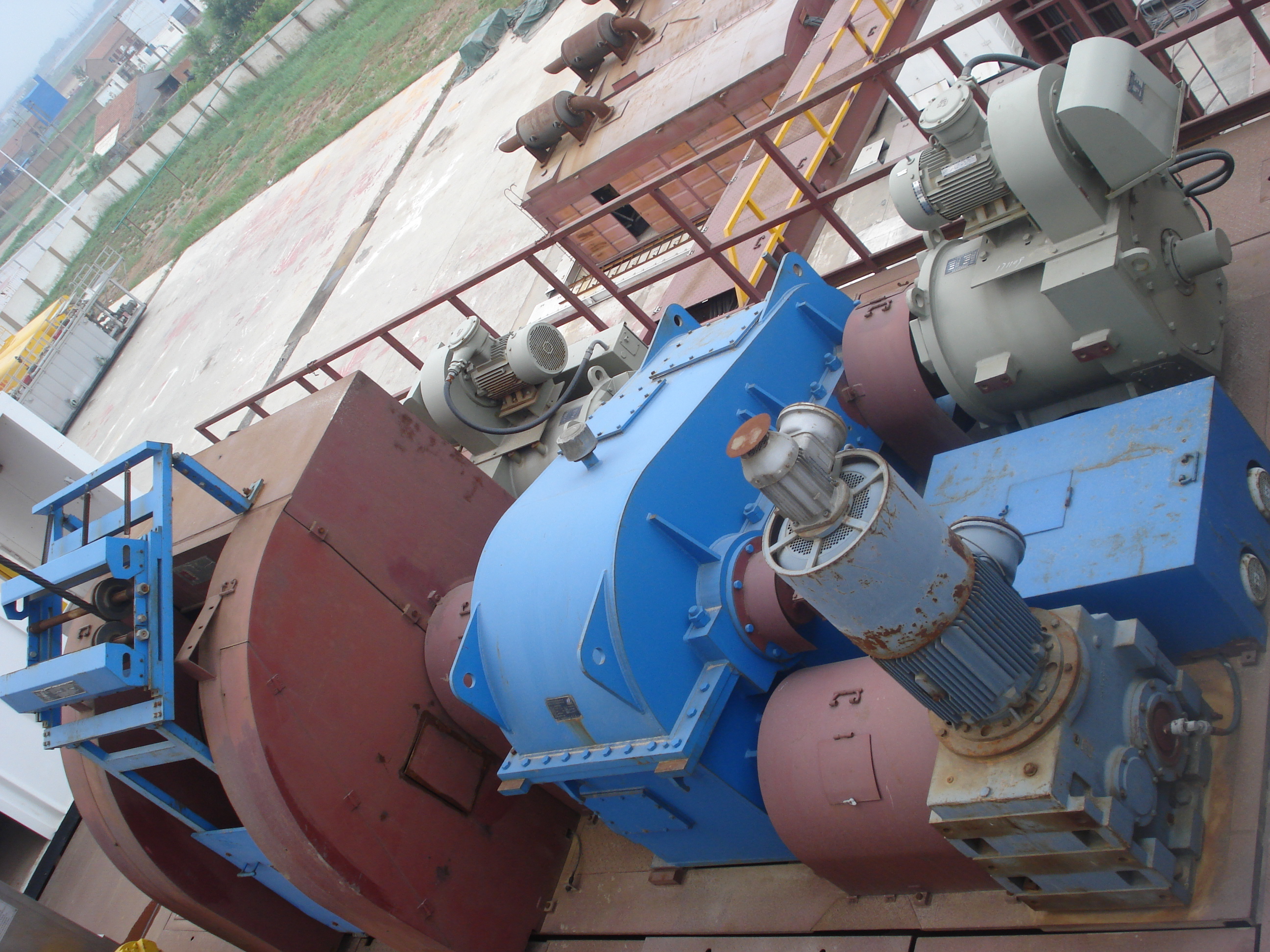

Drawworks for Drilling Rigs
- Execution Standard: API Spec 7K
- Rated Power: 350 hp–3,000 hp (257 kW–2210 kW)
- Maximum Fastline Pull: 180 kN–630 kN
- Maximum Hook Speed: 1.2 m/s–1.7 m/s
- Wireline Diameter: 22 mm–45 mm (7/8”–1 3/4”)
- Main Brake Type: Belt brake / hydraulic disc brake
- Auxiliary Brake Type: Dynamic brake, eddy current brake
Drawworks for Workover Rigs
- Execution Standard: API Spec 7K
- Rated Power: 250 hp–1,000 hp (180 kW–735 kW)
- Maximum Fastline Pull: 120 kN–275 kN
- Maximum Hook Speed: 1.5 m/s
- Wireline Diameter: 22 mm–32 mm (7/8”–1 1/4”)
- Main Brake Type: Belt brake / hydraulic disc brake
- Auxiliary Brake Type: Eaton brake
